SKU:
12V300N35MMS-BLACK50MM-13

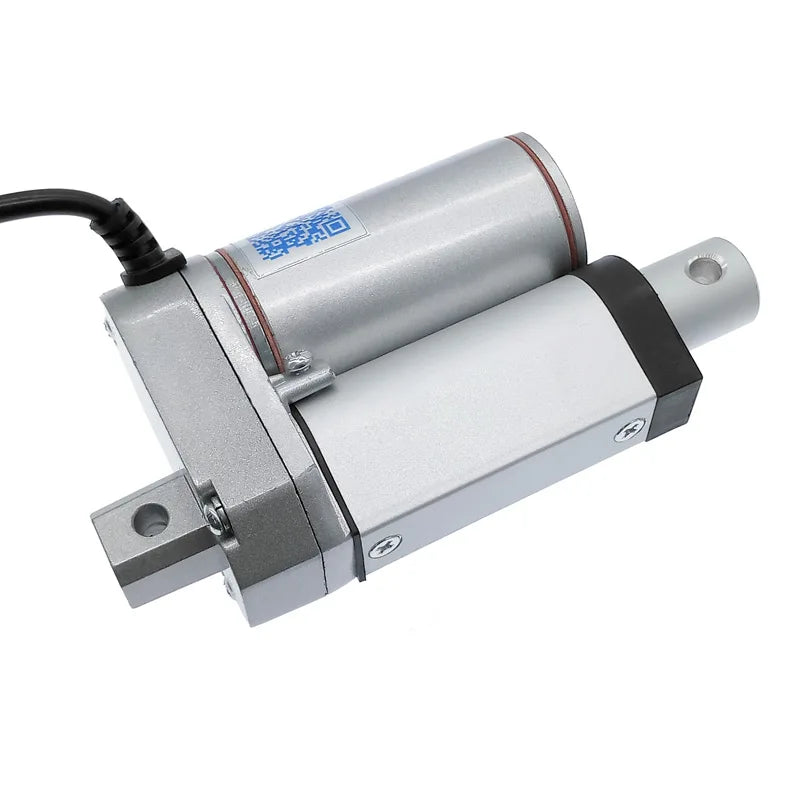

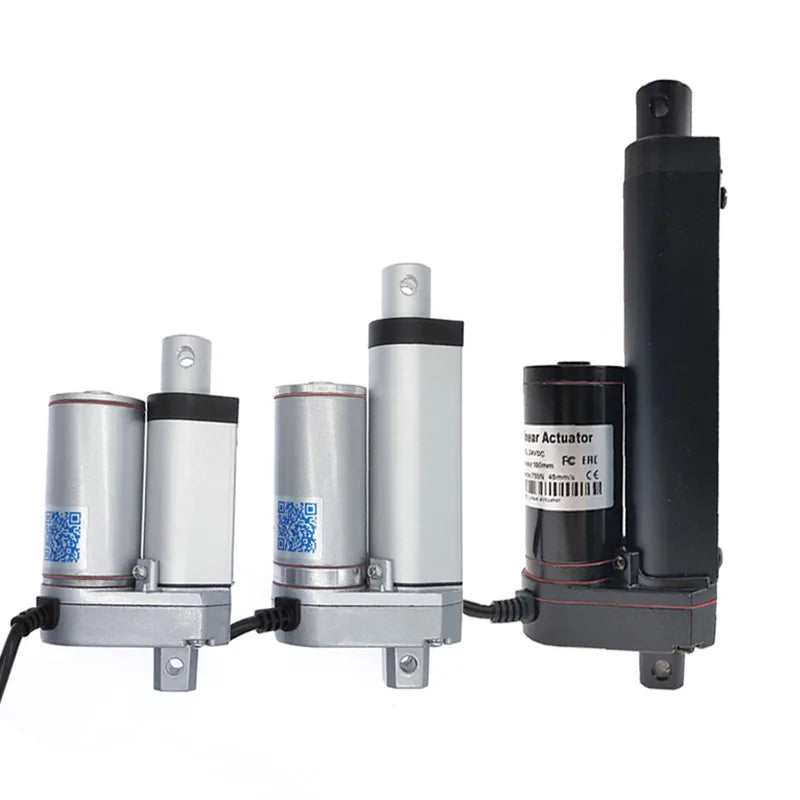

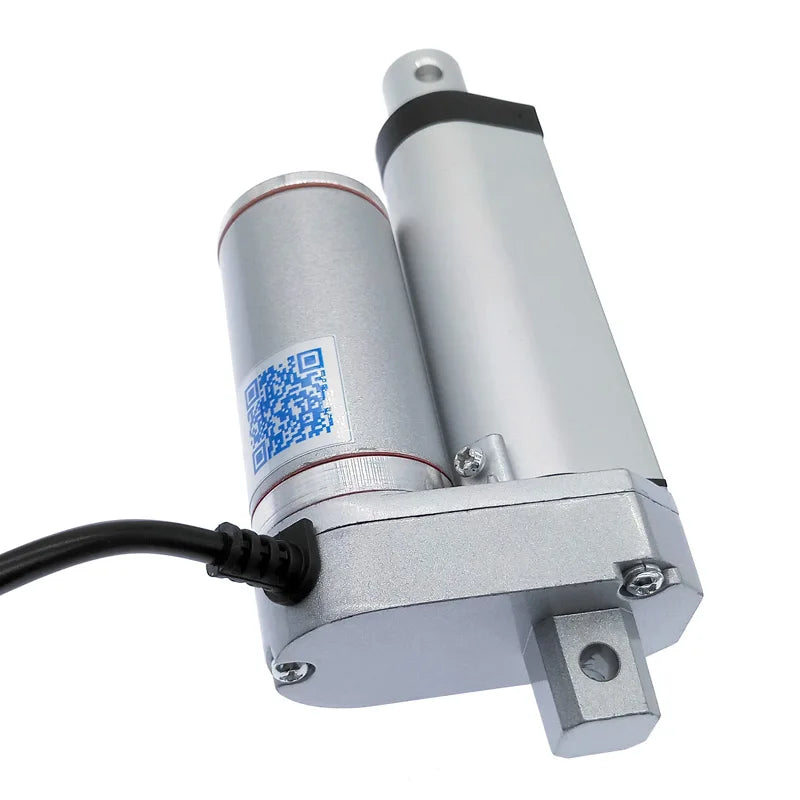

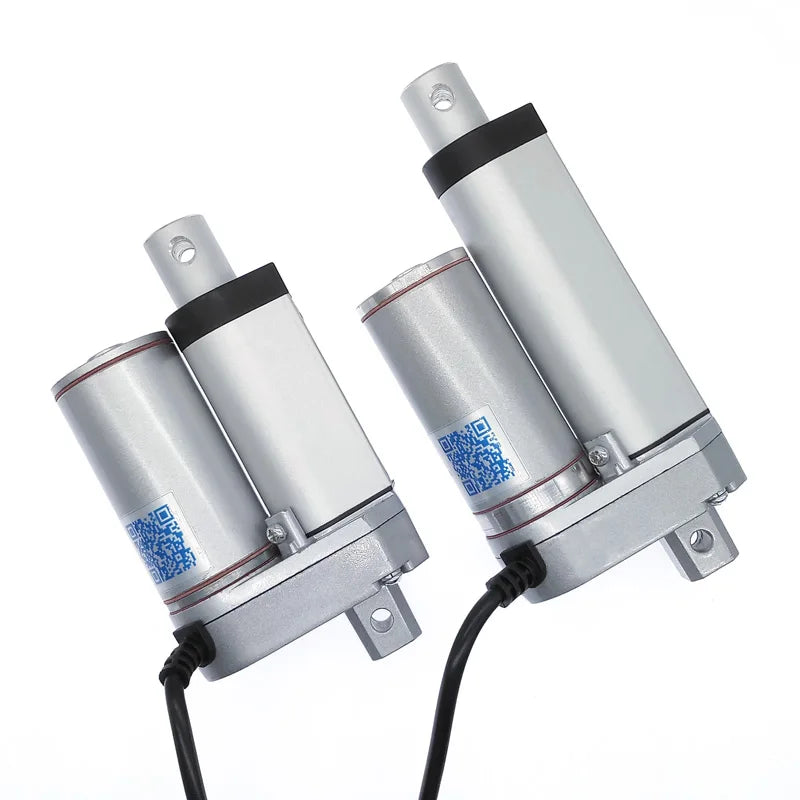

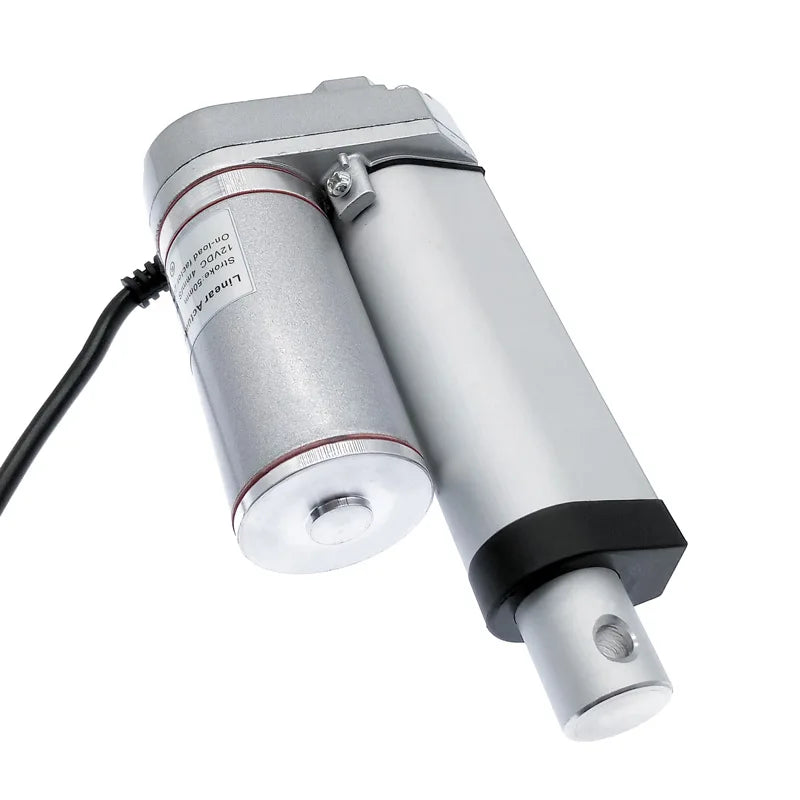

Electric Motor Dc 12V Linear Actuator 100mm 50mm 30mm Stroke 24V
- Regular price
- €33,28
Out of stock
- Regular price
- €33,28
Technical Parameters:
Rated power: 20W Maximum 30W
Stroke: 50mm/100mm/150mm/200mm/250mm/300mm/350mm/400mm/450mm/500mm
Permanent magnet DC motor drive;
Voltage: 12V,24V
Standard protection grade: IP54
Material: aluminum alloy
Ambient temperature -20°C to +75°C.
Low noise design, noise level less than 42dB.
Application: Television
The self-locking force of the linear actuator is about 80%
Size：
L= Minimum installation distance
S= Effective stroke
Size introduction:
Stroke Length: means the movement length of linear actuator.
Retracted Length: means the length when linear actuator 100% fully closed.
Extended Length: means the length when linear actuator 100% fully open.
Stroke length introduction:
50mm Stroke, Retracted Length=155mm, Extended Length=205mm
100mm Stroke, Retracted Length=205mm, Extended Length=305mm
150mm Stroke, Retracted Length=255mm, Extended Length=405mm
200mm Stroke, Retracted Length=305mm, Extended Length=505mm
250mm Stroke, Retracted Length=355mm, Extended Length=605mm
300mm Stroke, Retracted Length=405mm, Extended Length=705mm
... ...
