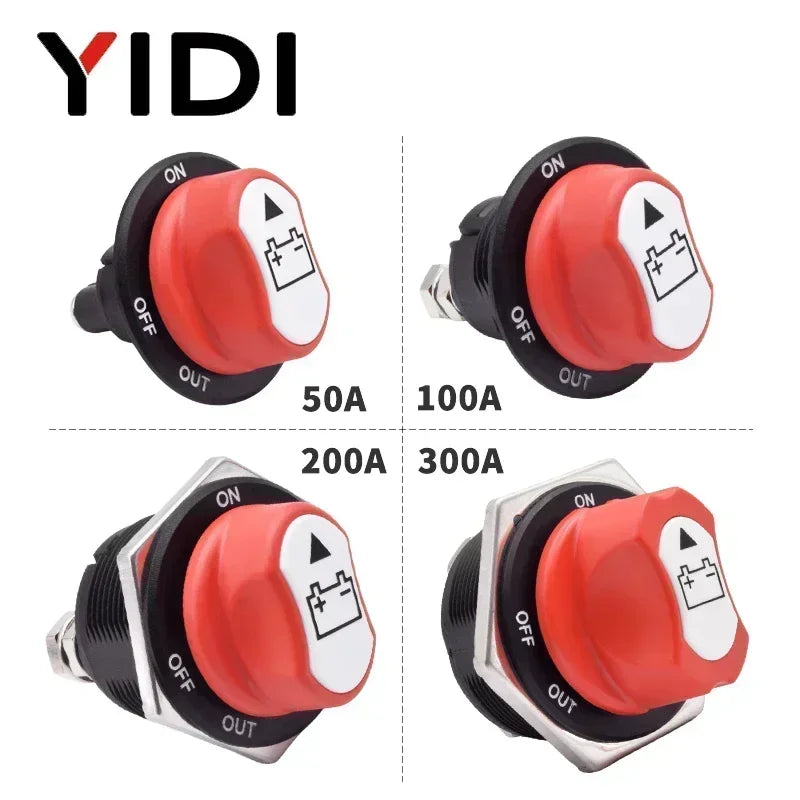

YIDI 1pc 50A 100A 200A 300A Car Battery Disconnect Cut Off Kill Switch 12V 24V DC Rotary Power Isolator Motorcycle Truck Boat Accessories

Product Features:

The battery switch can protect the power supply and safely prevent leakage.
Switch to OUT, you can remove the red cover equivalent to a key.
Effectively prevent others from accidentally changing the connection, fully insulate the terminals on the back, and prevent short circuits.
When the vehicle is not in use, it can eliminate the power consumption of the battery.
Small size, sturdy and durable.

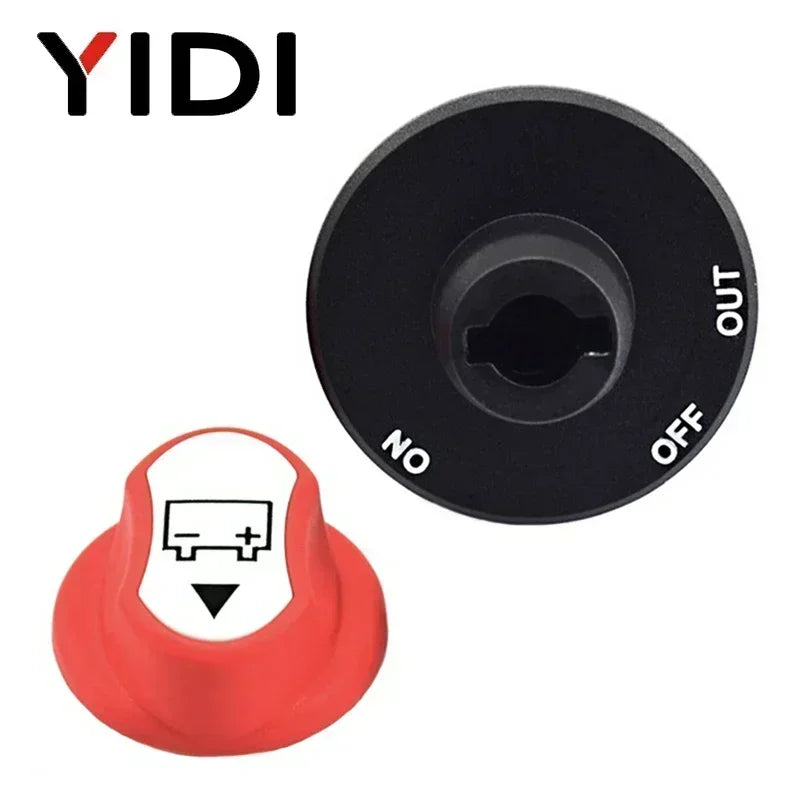

Easy to install, the knob can be detached.

Suitable for cars, off-road vehicles, trucks, motorcycles, ships, etc.

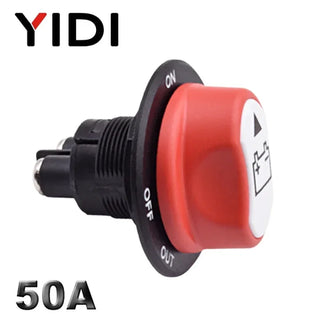

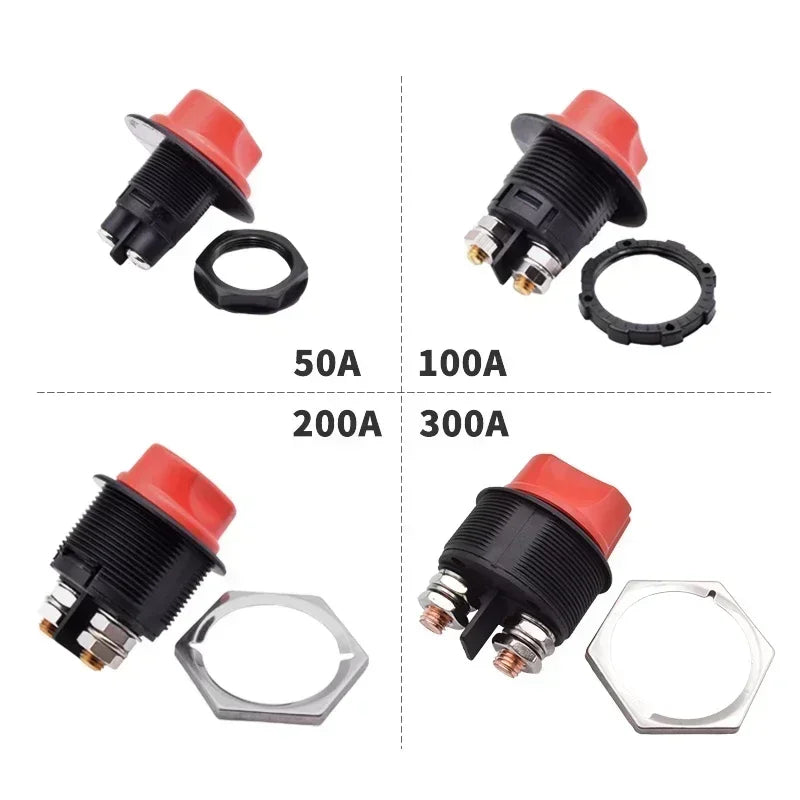

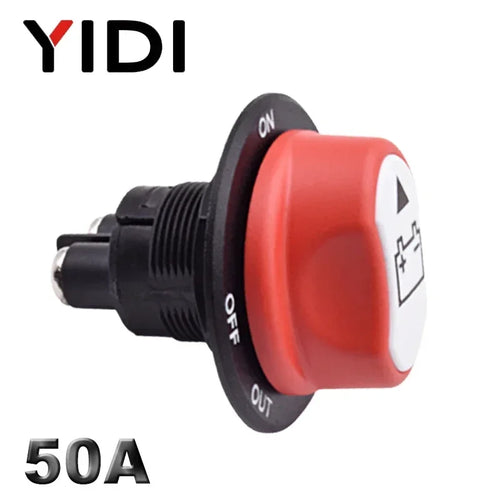

1. 50A Max. 50V DC Car Battery Switch
Mounting Hole: about 22mm
Material: ABS plastic + copper plated silver inner core
Switch Function: 2P SPST OFF-ON
Rated Current: 50A
Voltage: 50V DC max (50A)
Intermittent Rating: 150 A
Cranking Rating: 300 A 5 sec
Contact Resistance: 50m ohm max
Insulation Resistance: 500V DC 100m ohm Min
Dielectric Strength: 1000V AC 1 minute,  2000V DC 1 minute

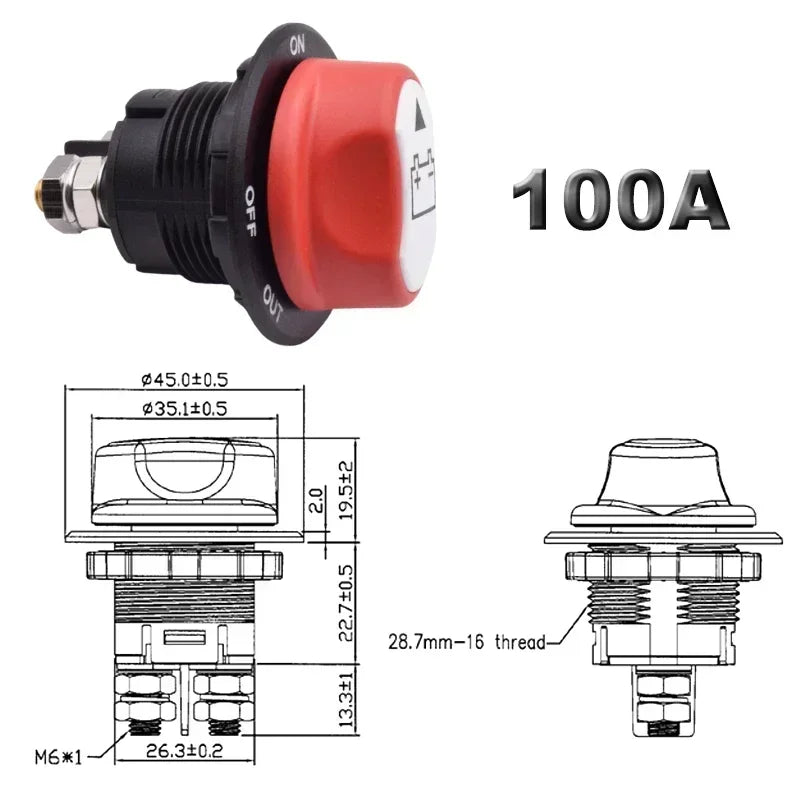

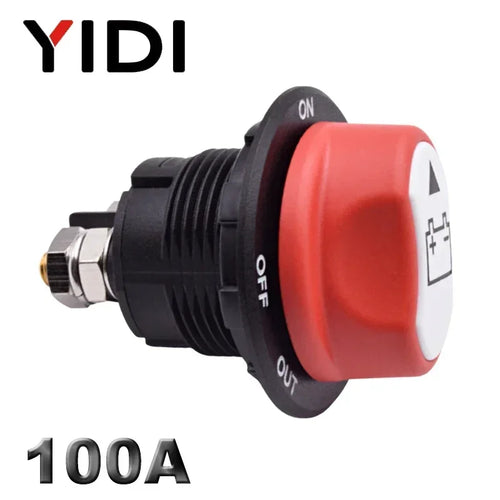

2. 100A Max. 32V DC Car Battery Switch
Mounting Hole: about 29mm
Material: ABS plastic + copper plated silver inner core
Switch Function: 2P SPST OFF-ON
Rated Current: 100A
Voltage: 32V DC max (100A)
Intermittent Rating: 150 A
Cranking Rating: 500 A 5 sec
Contact Resistance: 50m ohm max
Insulation Resistance: 500V DC 100m ohm Min
Dielectric Strength: 1000V AC 1 minute,  2000V DC 1 minute

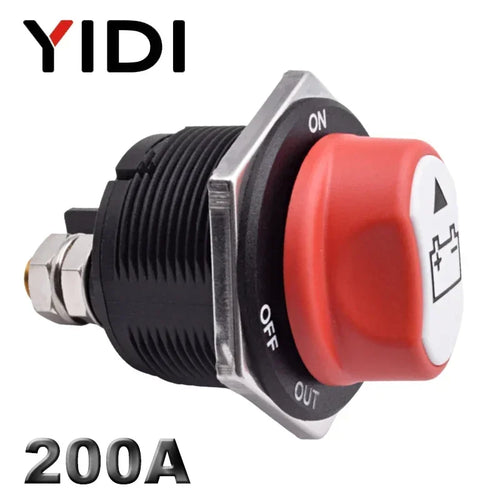

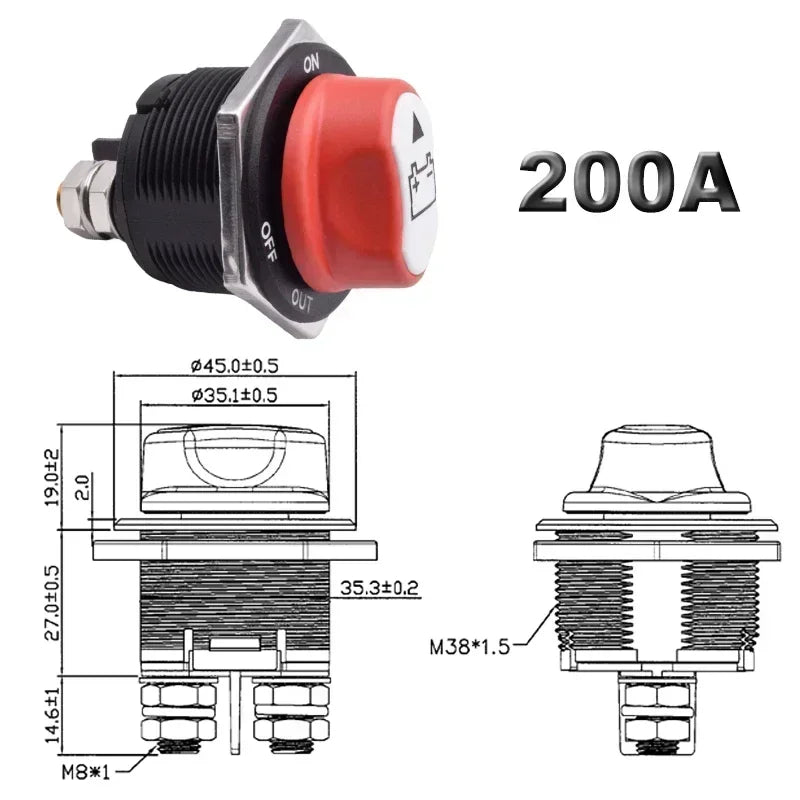

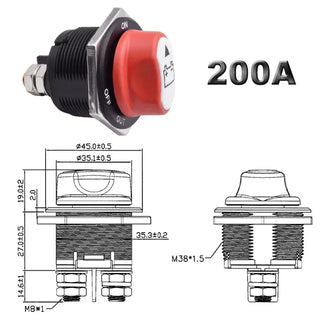

3. 200A Max. 32V DC Car Battery Switch

Mounting Hole: about 38mm
Material: ABS plastic + copper plated silver inner core
Switch Function: 2P SPST OFF-ON
Rated Current: 200A
Voltage: 32V DC max (200A)
Intermittent Rating: 300 A
Cranking Rating: 1000 A 5 sec
Contact Resistance: 50m ohm max
Insulation Resistance: 500V DC 100m ohm Min
Dielectric Strength: 1000V AC 1 minute,  2000V DC 1 minute

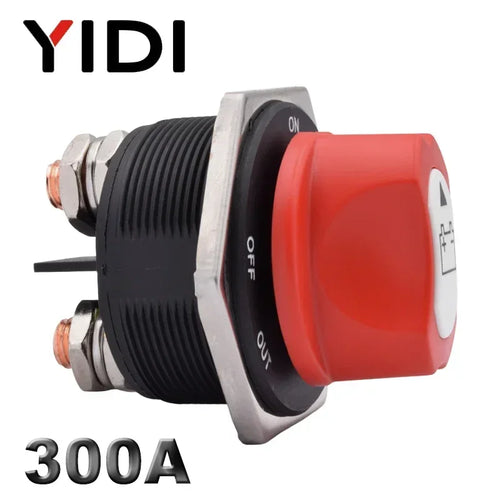

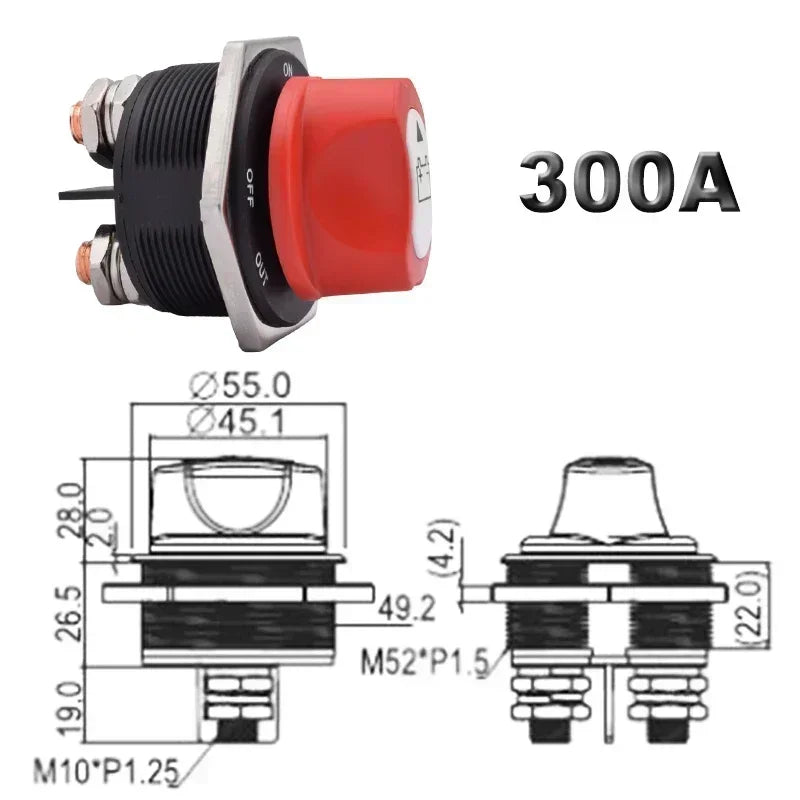

4. 300A Max. 32V DC Car Battery Switch

Mounting Hole: about 52mm
Material: ABS plastic + copper plated silver inner core
Switch Function: 2P SPST OFF-ON
Rated Current: 300A
Voltage: 32V DC max (300A)
Intermittent Rating: 450 A
Cranking Rating: 1000 A 30 sec
Contact Resistance: 50m ohm max
Insulation Resistance: 500V DC 100m ohm Min
Dielectric Strength: 1000V AC 1 minute,  2000V DC 1 minute
