AliExpress
SKU:
225MMSENSOR
0-190 Ohms Fuel/Water Level Sensor For Auto Car Boat Water Tank Level
- Regular price
- €16,68
Out of stock
- Regular price
- €16,68
Specification:
- Signal: 0-190ohm
- Working volt:9-32VDC
- Operating current: ≤60mA
- Operating temperature: -30~+75℃
- Storage temperature: -40~+85℃

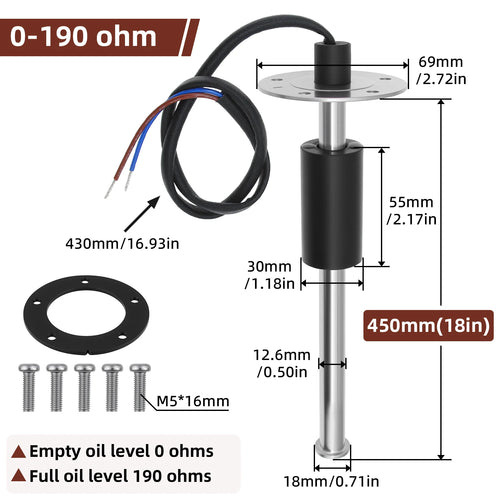

- Sensor Length:
100mm/125mm/150mm/175mm/200mm/225mm/250mm/275mm/300mm/325mm/350mm/375mm/400mm/425mm/450mm/475mm/500mm
- Assembly: 5 holes
- Protection rank: IP67

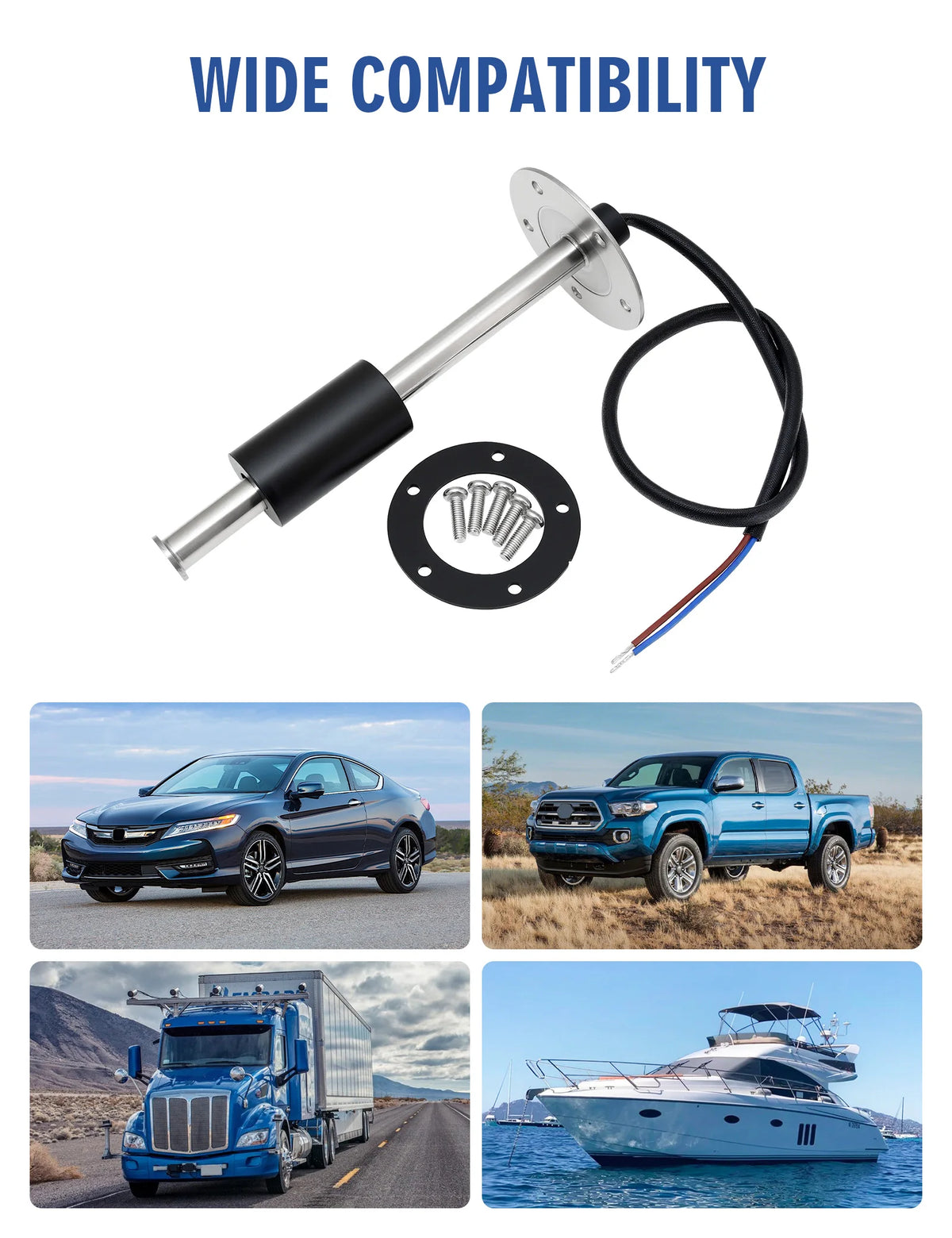

- Level Sensor Support : Fuel Level Gauge and Water Level Gauge
Attention:
- Empty oil level: 0 ohm
- Full oil level: 190 ohm
- When the oil / water level is empty , there will be a space of 3-21mm between the sensor float and the bottom of the sensor. This is a safe distance, and the sensor can work normally, Thank you~
Instructions:

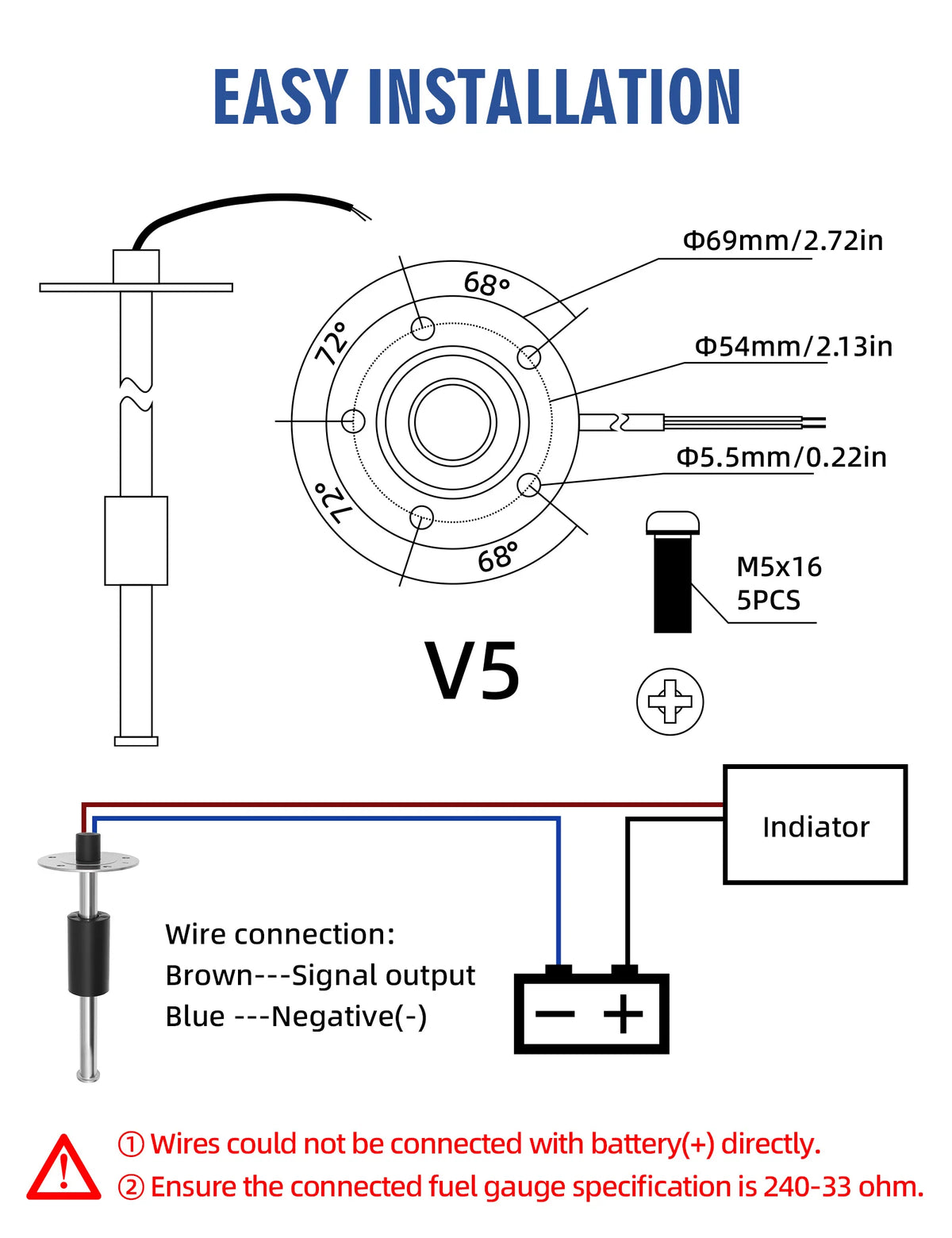

1. Please tind corresponding wiring diagram of the level sensor you have,and finish the connection as the instruction.
2.The rated power of the resistor used for the sensor is 1/8W only.Please make sure not to exceed the rated power when it is working.
3.If user need to connected a pull-up resistor to divide the voltage. Its own value was advised to behalf of the maximum ohm value of the level sensor.
